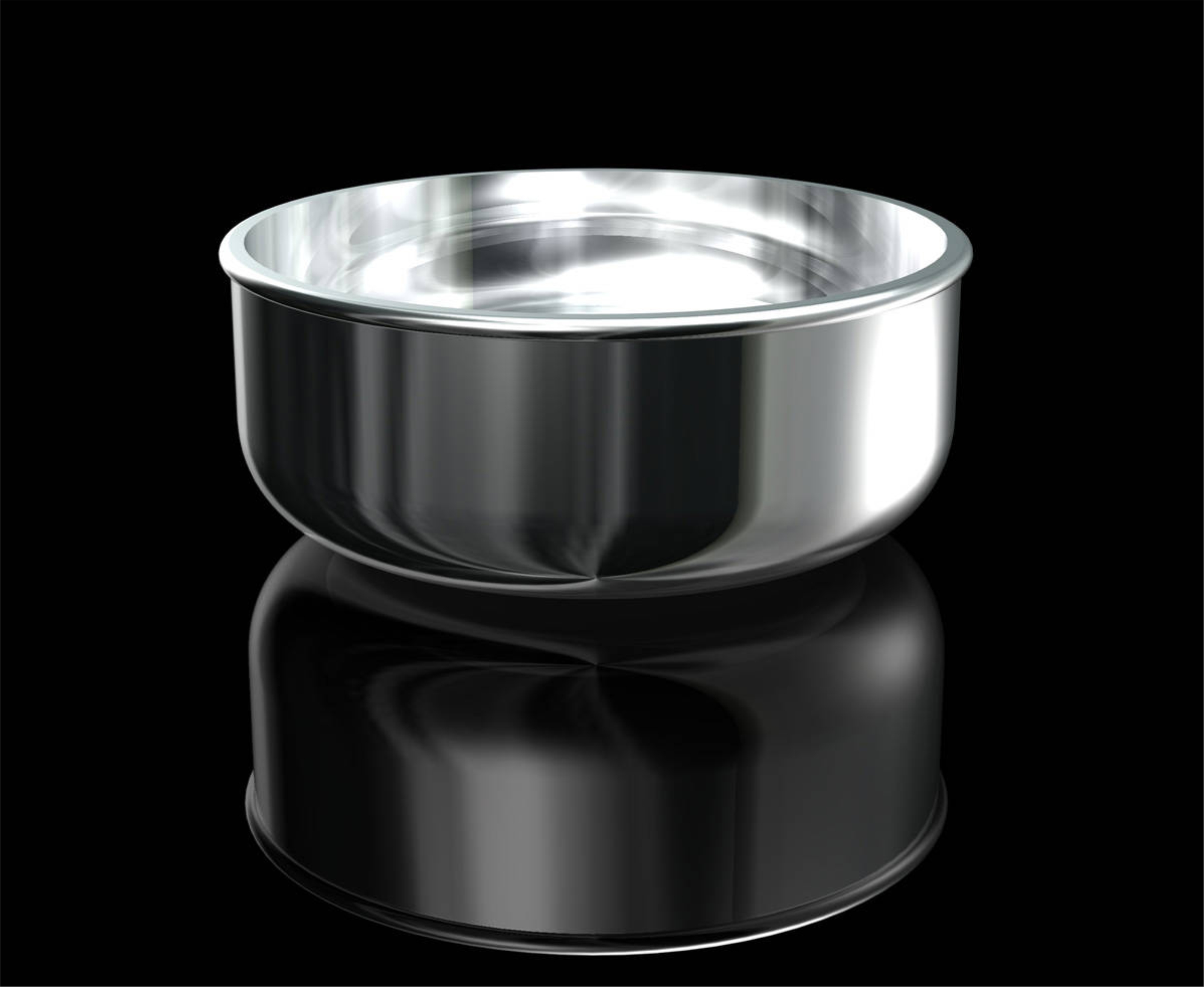

Dishes in this series are available from 50 to 700 ml capacity having similar shape and proportionate dimensions and weights. These dishes have rounded thick base to withstand heavy wear. These dishes are normally supplied with pouring lips and without lids. Crucible or watch glass type lids for these dishes can be supplied against specific orders. The purity of platinum used for the manufacture of these dishes is 99.95%. shallow dishes for iron & steel, water, sugar analysis manufactured against order.
Catalogue No. | Capacity | Top Diameter | Height | Approximate Weight | Approximate Weight of watchglass type lid |
---|---|---|---|---|---|
ml | mm | mm | Gram | ||
Rh132 | 50 | 57 | 26 | 19 | 9 |
Rh133 | 60 | 63 | 27 | 24 | 11.5 |
Rh134 | 75 | 70 | 28 | 28 | 14 |
Rh135 | 100 | 75 | 29 | 37 | 17 |
Rh136 | 150 | 85 | 35 | 57 | 23 |
Rh137 | 250 | 100 | 41 | 93 | 33 |
Rh138 | 500 | 125 | 50 | 175 | 50 |
Rh139 | 700 | 143 | 58 | 205 | 65 |
Dishes for micro and semi-micro-chemical use have increasing demand. Hence, we have enlarged the above series with 10 to 30 ml capacities..
Catalogue No. | Capacity | Top Diameter | Height | Approximate Weight | Approximate Weight of watchglass type lid |
---|---|---|---|---|---|
ml | mm | mm | Gram | ||
Rh140 | 10 | 35 | 17 | 7.5 | 3.5 |
Rh141 | 15 | 38 | 19 | 10 | 4 |
Rh142 | 20 | 42 | 20 | 13 | 5.5 |
Rh143 | 30 | 50 | 22 | 15 | 9 |
